Primary Applications:
Permanent Set - Irrigation of crops such as Corn, Wheat, Hay, Sugarcane etc., Portable system, Dust control, Waste Water Spray, Field Irrigation.
Features:

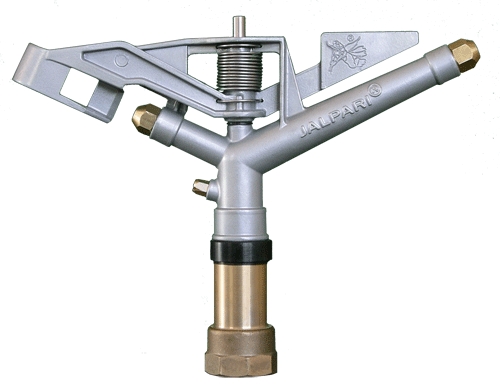

- Durable, Aluminium body and Aluminium arm with heavy duty brass bearing sleeves and nipple.
Technical Specifications:
- Trajectory Angle - 22 Degrees.
- 2" Female pipe connection.
- Pressure: 4 - 6.5 Bars
- Flow rate: 21.6 - 40.98m3/h (360 - 683 Lpm)
- Spacing: 36 Mts.
- Weight: 3400 Gms.
MAIN NOZZLE |
SPREADER NOZZLES |
PRESSURE AT SPRINKLER |
CASTING RADIUS |
DISCHARGE |
Dia (mm) |
Dia (mm) |
kPa |
m |
m3/hr |
LPM |
12.0* |
9.0 & 5.0 |
500 |
32 |
21.60 |
360 |
12.7 |
9.0 & 5.0 |
500 |
33 |
22.00 |
367 |
14.0* |
9.0 & 5.0 |
550 |
34 |
27.42 |
457 |
16.0* |
9.0 & 5.0 |
600 |
36 |
34.44 |
574 |
18.0* |
9.0 & 5.0 |
600 |
38 |
40.98 |
683 |
*Optional
|
