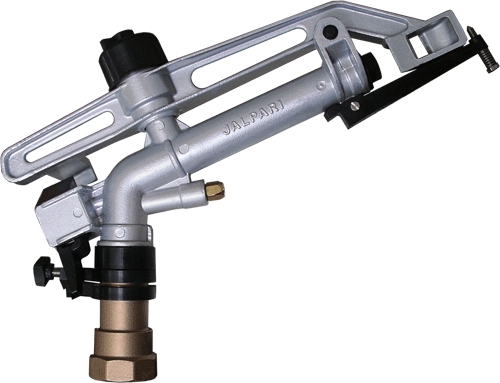

1 ½" Full and Part Circle



<< Previous   1 ½   Next >>
Product Specification

Primary Applications:

Permanent Set - Irrigation of crops such as Corn, Wheat, Hay, Sugarcane etc., Portable system, Dust control, Waste Water Spray, Field Irrigation.

Technical Specifications:

  • Trajectory Angle: 25 Degrees.
  • 1 1/2 Female pipe connection.
  • Pressure: 2 - 6 Bars.
  • Flow rate: 8.58 - 22.5m3/h (143 - 375 Lpm).
  • Maximum spacing: 30 Mts.
  • Weight: 2300 Gms.

 MAIN NOZZLE

SPREADER NOZZLE

PRESSURE AT SPRINKLER

CASTING RADIUS

 DISCHARGE

 Dia (mm)

 Dia (mm)

 kPa

 m

 m3/hr

LPM

12.0

 5.0

 200

 22

 8.6

 143

12.0

 5.0

 300

 24

 10.5

 175

12.0

 5.0

400

 26

 12.1

 202

12.0

 5.0

 500

 29

 13.6

 227

14.0

 5.0

 200

 23

 11.2

 187

14.0

 5.0

 300

 25

 13.9

 232

14.0

 5.0

 400

 28

 15.8

 263

14.0

 5.0

 500

 30

 17.7

 295

16.0

 5.0

 200

 24

 14.2

 237

16.0

 5.0

 300

 26

 17.4

 290

16.0

 5.0

 400

 29

 20.1

 335

16.0

 5.0

 500

 32

 22.5

 375

 18.0*

 5.0

 300

 27

 21.6

 360

 18.0*

 5.0

 400

 30

 24.9

 415

 18.0*

 5.0

 500

 33

 27.8

 463

 18.0*

 5.0

 600

 35

 30.5

 508

*Optional

Product Code : Raingun - 38      Brand Name :Jalpari
