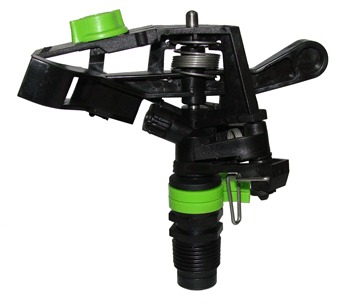

| Full and Part Circle
Technical Specifications:
- Body trajectory: 25 Degrees.
- 1/2" Male pipe connection.
- Pressure: 1.0 - 4.0 Bars.
- Flow: 0.36 - 1.18 m3/h (6 - 19.67 LPM).
- Weight: 68 Gms.
MAIN NOZZLE |
PRESSURE AT SPRINKLER |
CASTING RADIUS |
DISCHARGE |
Dia (mm) |
kPa |
m |
m3/hr |
LPM |
3.0* |
100 |
9.50 |
0.36 |
6.00 |
3.0* |
200 |
11.50 |
0.51 |
8.50 |
3.0* |
300 |
12.00 |
0.63 |
10.50
|
3.0* |
400 |
12.50 |
0.72 |
12.00 |
4.0 |
100 |
10.50 |
0.60 |
10.00
|
4.0 |
200 |
12.00 |
0.85 |
14.17 |
4.0 |
300 |
13.00 |
1.03 |
17.17
|
4.0 |
400 |
13.00 |
1.18 |
19.67
|
*Optional
|
