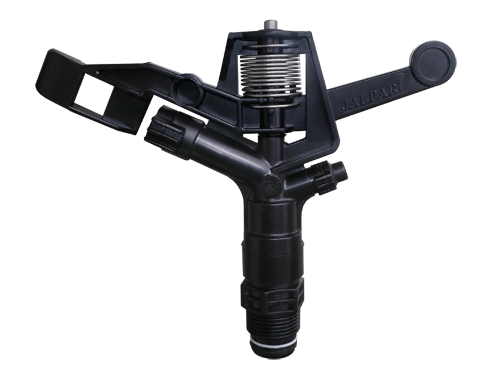

Technical specifications:
- Body trajectory: 25 Degrees.
- 3/4'' Male pipe connection.
- Pressure: 2.0 - 3.0 Bars.
- Flow: 1.32 - 2.17m3/h (22.0-36.2 Lpm)
- Weight: 102 Gms.
MAIN NOZZLE |
SPREADER NOZZLE |
PRESSURE AT SPRINKLER |
CASTING RADIUS |
DISCHARGE |
Dia (mm) |
Dia (mm) |
kPa |
m |
m3/hr |
LPM |
4.0* |
3.2 |
200 |
12.75 |
1.32 |
22.0 |
4.0* |
3.2 |
250 |
13.50 |
1.48 |
24.7 |
4.0* |
3.2 |
300 |
14.00 |
1.62 |
27.0 |
4.5* |
3.2 |
200 |
13.25 |
1.54 |
25.7 |
4.5* |
3.2 |
250 |
13.75 |
1.73 |
28.8 |
4.5* |
3.2 |
300 |
14.25 |
1.89 |
31.50 |
5.0 |
3.2 |
200 |
13.25 |
1.77 |
29.5 |
5.0 |
3.2 |
250 |
13.75 |
1.98 |
33.0 |
5.0 |
3.2 |
300 |
15.00 |
2.17 |
36.2 |
*Optional
|
